Features: High Precision
Easy To Operate
Durable
Display: LCD
Power Supply: AC 220V±10%
Air Source: 0.5-0.8MPa
Operating Ambient Temperature: 10℃~+35℃
Application: Cigarette Products Manufacturers
Testing Instrument
Measurement Equipment
Humidity Range: 40%-65%RH
Minimum Order Quantity 1set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-3 month
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 10sets/2 month Minimum Order Quantity 1set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-3 month Payment Terms L/C
D/A
D/P
T/T Supply Ability 10sets/2 month
Product Description:

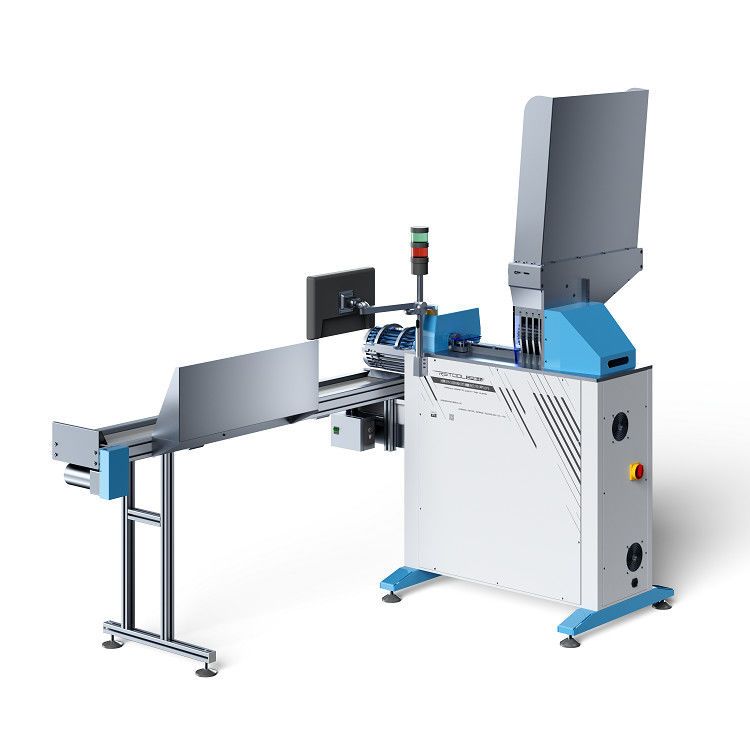

The CFS-ll Capsule Cigarette Quality Test System is an automated filter rod sorting device used for automatically detecting the quality of the capsule filter rods and rejecting the defective products.It adopts the microwave measurement technology and high-speed and high-precision sensors to detect the quantity,position and damage of the capsule in the capsule filter rod,and can automatically reject defective samples according to preset parameters.The whole equipment is fully automated and performs high-speed detection and rejection,meeting the needs of on-line production and detection in factories. The system is mainly used for the full inspection before exiting the factory and the warehouse-in inspection after the production.
Features:
- 1.It achieves the high-speed data acquisition process at the nanosecond level based on Beckhoff's IPC control technology and the real-time Ethemet (EtherCAT)high-end technology.
- 2.It adopts the microwave measurement technology to detect the capsule in the capsule filter rod.
- 3.It performs high-speed detection and rejection,without damage to filter rods.
- 4.It tests the quality of each capsule filter rod and removes the defective capsule filter rod in real time.
- 5.It adopts the cigarette distributor to receive,buffer,sort and reject the filter rods,reliable and stable.
- 6.It provides a manual cigarette carrying bench,convenient for workers to operate.
- 7.It adopts the filter rod box directly for feeding,with high working efficiency.
Technical Parameters:
| Detection mode |
Continuous detection automatic rejection |
| Sample type | Ordinary capsule filter rod,composite capsule filter rod (to be customized) |
| Filter rod length range | 60～150mm |
| Filter rod diameter range | 5.4~6.0mm,6.0~7.0mm,or 7.0~8.0mm |
| Capsule diameter | ≥2mm |
| Minimum distance between capsules | ≥4mm |
| Minimum distance between capsule and end face | ≥3mm |
| Measurement accuracy of capsule position | ±0.2mm |
| Hopper capacity | 2-3 boxes,full-box feeding |
| Detection speed | ≥1500 pcs/min(special filter rod shall be determined by on-site commissioning) |
| Capsule color | Unlimited |
| Detection accuracy | ≥99.99% |
| False rejection rate | ≤0.05% |
Measurement principle:
With the hopper for discharging,the system delivers filter rods to the steady-speed wheel by the negative pressure suction belt, and the speed is stabilized by the steady-speed wheel,so that filter rods pass through the microwave at a constant speed for detection, and then into a drum for collection.
Support and Services:
Our cigarette testing instrument comes with a comprehensive technical support and service package to ensure you get the most out of your product. Our team of experienced technicians and engineers are available 24/7 to provide you with the following services:
- Troubleshooting and repair of defective components
- Software/firmware updates
- Hardware upgrades
- Data analysis and reporting
- Maintenance and calibration services
- Product training and user support
We are dedicated to providing you with the best service and support possible. If you have any questions or concerns regarding our cigarette testing instrument, please don’t hesitate to contact us.
Packing and Shipping:
Cigarette Testing Instrument is shipped securely, with the following packaging and shipping protocols:
- The Cigarette Testing Instrument is placed in a shockproof, waterproof container.
- The container is sealed with a tamper-evident seal.
- The container is then placed in a cardboard box.
- The box is securely sealed with packing tape.
- The box is labeled with the relevant shipping information.
- The box is shipped to its destination via an approved carrier.
