Features: High Precision
Easy To Operate
Durable
Humidity Range: 40%-65%RH
Operating Ambient Temperature: 10℃~+35℃
Display: LCD
Application: Cigarette Products Manufacturers
Testing Instrument
Measurement Equipment
Air Source: 0.5-0.8MPa
Power Supply: AC 220V±10%
Minimum Order Quantity 1set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-3 month
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 10sets/2 month Minimum Order Quantity 1set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-3 month Payment Terms L/C
D/A
D/P
T/T Supply Ability 10sets/2 month
Product Description:

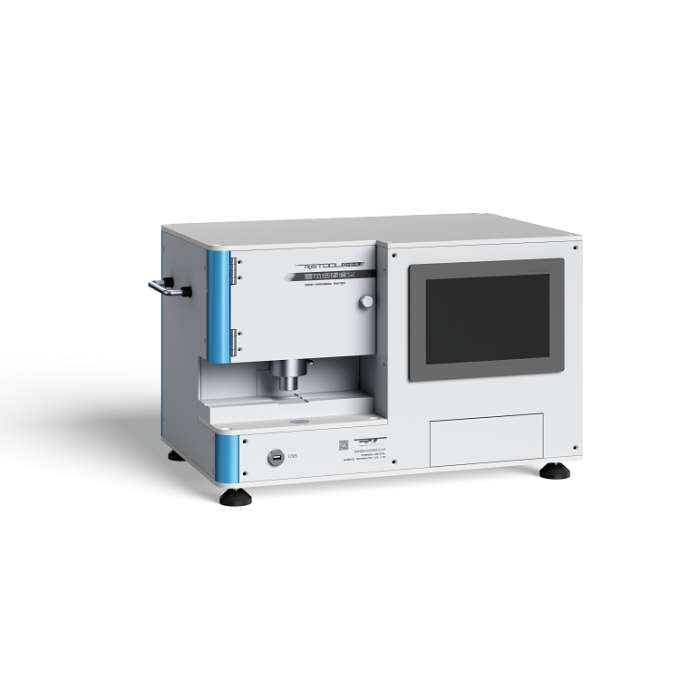

The CHl-A Cigar Hardness Tester is suitable for measuring the cigar hardness.Apply pressure to the cigars for a certain time,and obtain the percentage of the change ratio of the front and rear radial values as the hardness.The cigar sample is manually placed at the test position,and the instrument automatically locates itself to the test point to obtain the test data.
Features:
- 1.It can measure the hardness of handmade cigars,machine-made cigars and regular cigarettes.
- 2.It adopts manual setting-out and automatic testing.
- 3.t is compatble with multiple test sample types.
- 4.It adopts the air float weight to apply vertical force,thus ensuring the accuracy of the applied pressure.
- 5.It adopts replaceable accessories and can obtain the hardness data under different conditions.
- 6.It includes accessory drawer for easy storage.
- 7.Data processing:display,statistics,printing,saving and query of measurement results.
- 8 lt can back up and export the measurement data via USB interface.
- 9.Built-in thermal printer prints measurement data.
- 10.It adopts the touch screen,Chinese graphical interface,easy to use and fast to master.
Technical Parameters:
| Sample type | Handmade cigars,machine-made cigars, egular cigarettes |
| Sample length | 90-230mm |
| Sample diameter | 12-25mm |
| Pressure application method | Air float weight,apply force vertically |
| Applied pressure | 2.94±0.01N,(300gf) |
| Pre-applied pressure | 98±1mN,(10gf) |
| I ndenter diameter | 12.00±0.01mm |
| Detection speed | 3 pcs/min |
| Detection mode | Automatic |
| Size | L*W*H=620mm*380mm*360mm |
| Weight | 30KG |
Packing and Shipping:
The Cigarette Testing Instrument is packaged with a protective covering to ensure safe delivery. Before shipping, we inspect all of its parts to ensure that the product is in perfect condition.
We use a variety of shipping methods, depending on the destination and the required delivery date. Our preferred method of shipping is through air freight for international orders.
We also ensure that the product is properly labeled and identified for customs clearance. We use the latest tracking software to monitor the progress of the shipment and ensure it is delivered on time.
