Features: High Precision
Easy To Operate
Durable
Display: LCD
Air Source: 0.5-0.8MPa
Power Supply: AC 220V±10%
Application: Cigarette Products Manufacturers
Testing Instrument
Measurement Equipment
Operating Ambient Temperature: 10℃~+35℃
Humidity Range: 40%-65%RH
Minimum Order Quantity 1set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-3 month
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 10sets/2 month Minimum Order Quantity 1set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-3 month Payment Terms L/C
D/A
D/P
T/T Supply Ability 10sets/2 month
Product Description:

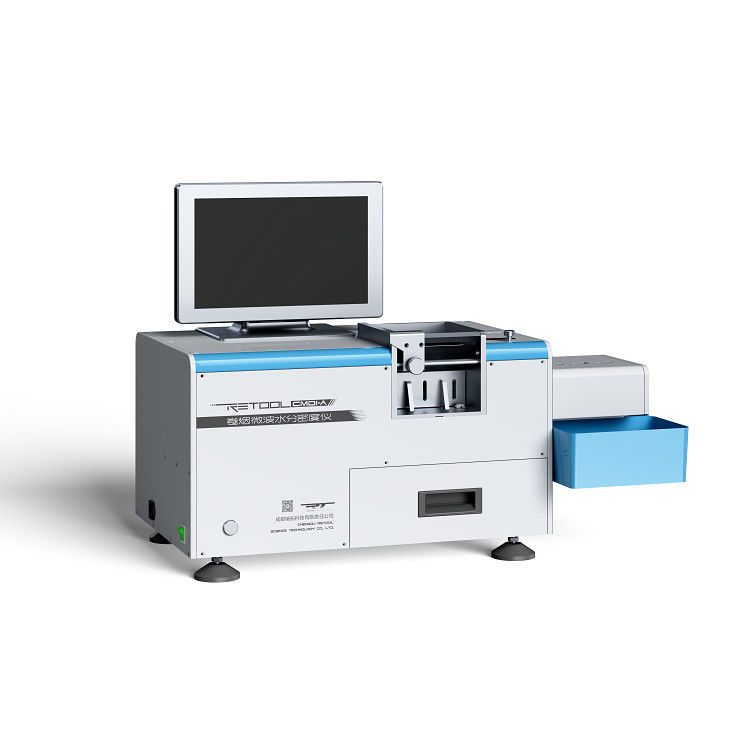

The CMDI-A Cigarette Microwave Moisture Density Tester is used to automatically measure the moisture,density and cutting position of cigarette section for the cigarette samples,thus evaluating and detecting the moisture-density proportion in the finished cigarette and the deviation of the cutting position of the cigarette section.It applies to multiple links in the cigarette production,such as on-line sampling inspection in the production workshop,and inspection and spot check of cigarette and fiter rod samples in testing stations and laboratories at all levels,etc.
Features:
- 1.It can collect the moisture and density of cigarette and filter rod quickly and non-destructively,and calculate the cutting position of cigarette section.
-
- 2It can measure the cigarettes of different length and different thickness without changing any parts.
-
- 3.It can qualify and sort the sample test results according to preset parameters.
-
- 4.It provides the microwave resonance technology for measurement regardless of the color of the test sample or different paper on the surface.
-
- 5.It provides Chinese software with a user-friendly interface,and does not require professional training,easy to learn and use,simple and fast to grasp.
-
- 6.It provides Windows 7 operating system and advanced industrial computer as the control core for a more stable working environment.
- 7.It provides 15-inch color LCD display with touch screen and USB interface.
Technical Parameters:
| Sample length range: 55～150mm |
| Sample circumference rang: 15.5～27.0mm |
| Moisture measurement range: 0~20% |
| Moisture measurement accuracy: ±0.3% |
| Density measurement range: 0～600mg/cm³ |
| Measurement speed: 15s±1s |
| Detection range of indentation Up to: 6 pcs/min |
| Hopper capacity: ≥150 pcs(at 7.8mm diameter) |
| Overall size: 880x470x690mm |
Applicable standards:
GB/T 22838.8-2009 Determination of the physical properties for cigarettes and filter rods -Part 8:Moisture content
Packing and Shipping:
The Cigarette Testing Instrument is packaged in a sturdy cardboard box with bubble wrap inside for extra protection. The box is labeled with the product name and serial number. The product is securely sealed and shipped in a reliable manner.
