Features: High Precision
Easy To Operate
Durable
Air Source: 0.5-0.8MPa
Power Supply: AC 220V±10%
Operating Ambient Temperature: 10℃~+35℃
Application: Cigarette Products Manufacturers
Testing Instrument
Measurement Equipment
Display: LCD
Humidity Range: 40%-65%RH
Minimum Order Quantity 1set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-3 month
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 10sets/2 month Minimum Order Quantity 1set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-3 month Payment Terms L/C
D/A
D/P
T/T Supply Ability 10sets/2 month
Product Description:

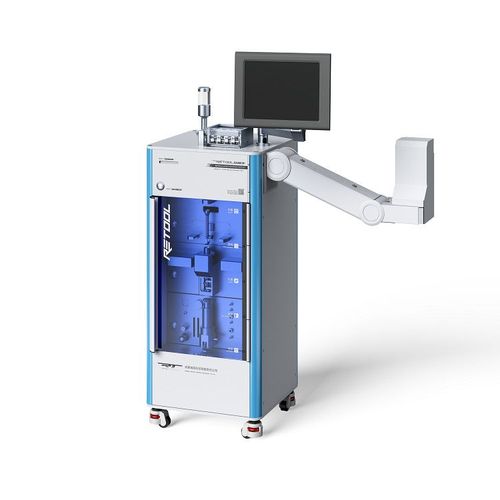

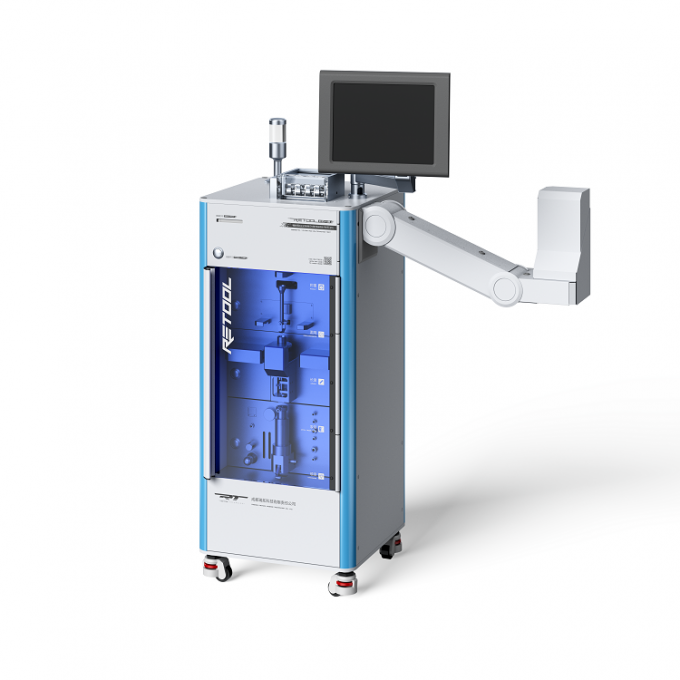

The Cigarette Online Automatic Sampling and Detection System is an automatic sampling and quality inspection system for cigarette making machine.It can automatically,quickly and continuously sample cigarettes in the production line,and test the indicators such as weight,circumference,roundness,length,and draw resistance,so as to realize the online monitoring of the quality of cigarette making production line
Features:
- 1.It can automatically,quickly and continuously sample a large number of cigarettes(10,000 cigarettes per minute at most)on the production line.
- 2.The sampling head adopts a dual-drive design,with fast sampling speed and high stability.
- 3.The sampling device and RT series comprehensive test bench are designed in an integrated manner,with the manual feeding function reserved.
- 4.It can configure the remote maintenance function for the remote diagnosis services.
- 5.Testing results can be uploaded to the server for centralized storage and remote and real-time monitoring.
- 6.It applies to various mainstream cigarette production machines with gap bridges.
- 7.Sampling mode and frequency can be customized.
- 8.It can automatically start and stop according to the running status of the production line.
Technical Parameters:
|
Number of control machines |
1 |
| Sample diameter range | 12mm - 25mm |
| Sample length range | 60mm- 230mm |
| Hopper capacity | ≥30 pcs |
| Discharging mode | Flexible discharging |
| Detection mode | Automatic |
| Detection speed | ≥6 pcs/min |
Support and Services:
At CIGTECH, we are committed to providing the highest quality Cigarette Testing Instrument and technical support services. Our highly trained staff has the expertise to provide efficient support and services for all of your Cigarette Testing Instrument needs.
Our technical support team is available to answer any questions you may have about your Cigarette Testing Instrument, as well as provide assistance with installation, troubleshooting, and maintenance. We can also provide comprehensive technical training and education on the operation and use of Cigarette Testing Instrument.
In addition to technical support, our staff is also available to provide product-specific services such as calibration, maintenance, and repair. We can also provide custom solutions for any Cigarette Testing Instrument needs you may have.
At CIGTECH, we strive to provide the highest quality Cigarette Testing Instrument and technical support services. With our expertise and comprehensive services, you can be sure that your Cigarette Testing Instrument needs are taken care of.
