Application: Filter Rod Making Machine
Power Supply: AC 220V±10%; 50Hz±5%
Air Source Requirements: <10Bar
Ambient Temperature: +10°C~+40°C
Ambient Humidity: 20%-80%
Minimum Order Quantity 1 set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-4 months
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 5 sets/3 months Minimum Order Quantity 1 set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-4 months Payment Terms L/C
D/A
D/P
T/T Supply Ability 5 sets/3 months
Performance and Features

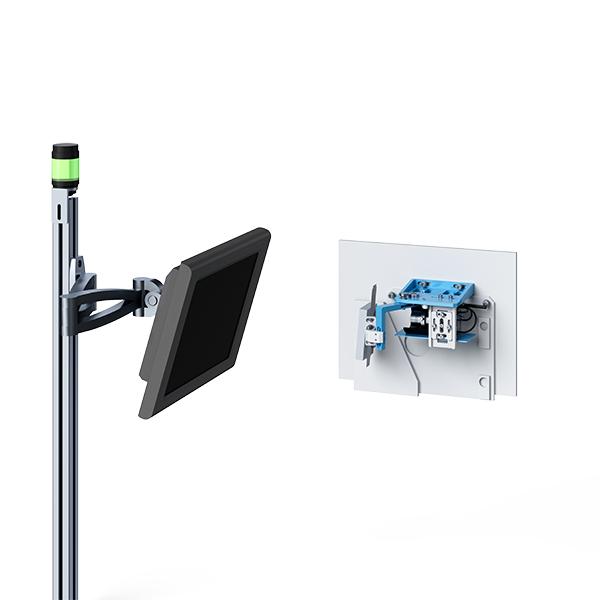

1. Machine vision is adopted to detect the glue line, which does not affect the passing of the forming paper or damage the glue line.
2. It can detect high and low-permeability forming paper.
3. It can detect the centerline glue (white latex) and lap glue (hot melt adhesive).
4. It can simultaneously calculate the width and continuity of the glue line.
5. It can dynamically display the glue line image, measured width and qualification judgment.
6. When the glue line becomes light and is short of glue intermittently, a light warning is given; In case of continuous glue shortage, a light fault signal is given in time, and a rejection signal of the shutdown port is given to the forming machine.
7. It can set the paper type, paper width, glue line position, and glue line parameters.
8. It can configure alarm conditions and shutdown conditions.
9. It can save operation log and provide query function.
Technical parameters
| Maximum width of cork paper | 30mm (including coarse and thin filter rods) |
| Machine running speed | 50-600 m/min |
| Maximum installation length | 170 mm |
| Glue line width measurement accuracy | 0.1mm |
| Sampling frequency | At least 50 sheets/second |
| Measurement accuracy | 0.2m (600m/min) |
| Width of cork paper | 19 ~ 26mm |
