Function: Filter Rods Accurate Counting Information Labeling System
Application: Filter Manufacturers
Equipment Dimensions: L × W × H: 1590×1350×1920mm
Equipment Net Weight: 150KG
Minimum Order Quantity 1 set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-4 months
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 5 sets/3 months Minimum Order Quantity 1 set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-4 months Payment Terms L/C
D/A
D/P
T/T Supply Ability 5 sets/3 months

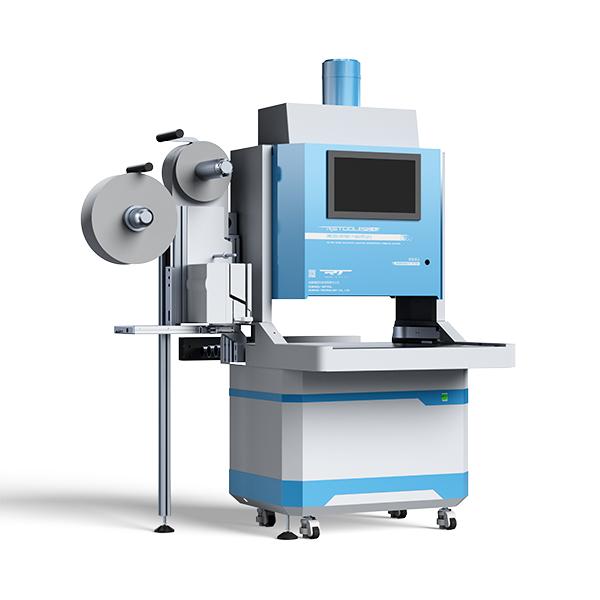

The SFC-II Filter Rods Accurate Counting Information Labeling System is used to accurately count, mark and label the filter rods packed in boxes in assembly line mode. In addition to counting, the equipment can also trace the product quality by pasting labels.
Performance and Features
1. It applies to filter rods of different specifications and can be used in the production site or quality control room.
2. It allows manual loading, pipeline inspection and manual packing.
3. It adopts the image processing technology to automatically and accurately count and print the counting results, and a light alarm is given when exceeding the limit.
4. The labeling machine is configured to automatically print the self-adhesive labels of small boxes and large boxes, and the label includes sample information, counting results, two-dimensional code, etc. The label for the small box is automatically stuck on the side of the small box, and the label for the large box is manually stuck on the side of the large box.
5. The sample information can be read by scanning the two-dimensional code on the small box or the large box for tracing the samples.
Data Processing:
6. Measurement results: display, statistics, print, save and query.
7. Data transfer: export data to USB flash drive via USB.
8. Interface information: USB, network.
Technical parameters
| Filter rod type | Ordinary white filter rod, red fragrance line filter rod, etc. |
| Sample circumference range | 15.5 ~ 27.0mm |
| Sample length range | 60 ~ 150mm |
| Sample color | This machine is suitable for basic white filter rods and white filter rods with red fragrance line. For other filter rods, the machine needs to be customized. |
| Sample packaging | Filter rods in box |
| Detection speed | 300 boxes/hour |
| Counting accuracy | Thick ±0.05%, thin ± 0.1% |
Equipment Size
| L × W × H | L × W × H: 1590×1350×1920 |
| Mounting size | 4m × 5m (including space for stacking boxes) |
| Net weight of equipment | Approx. 160Kg |
