Function: Measuring And Testing Of The Physical Charactoristics Of Tobacco Products
Application: Cigarette Products Manufacturers
Testing-certification Institutions
Laboratories
Power Supply: 220V±10%; 50Hz±5%
Power ＜ 100W
Operating Ambient Temperature: +10℃~+40℃
Operating Ambient Humidity: 40%~65%RH50%~60% (optimal); 80% (max)
Air Source: ≥0.5 Mpa
Minimum Order Quantity 1 set
Price 20
000-200
000USD
Packaging Details wooden box
Delivery Time 2-4 months
Payment Terms L/C
D/A
D/P
T/T
Supply Ability 5 sets/3 months Minimum Order Quantity 1 set Price 20
000-200
000USD Packaging Details wooden box Delivery Time 2-4 months Payment Terms L/C
D/A
D/P
T/T Supply Ability 5 sets/3 months

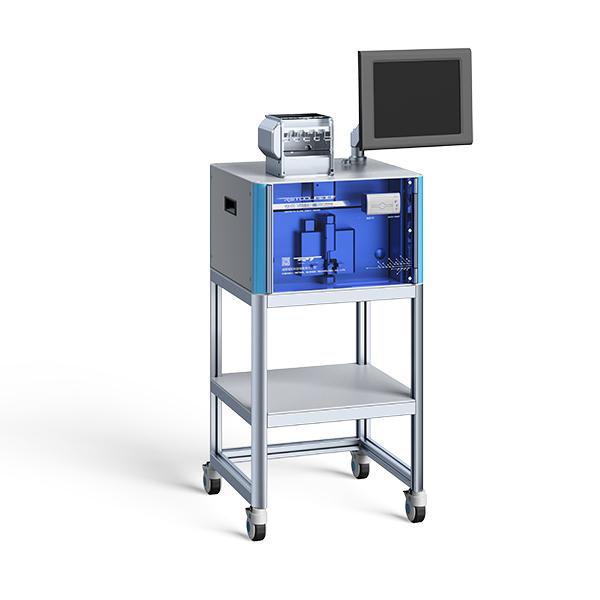

The SDRGN-E Paperless Filter Pressurs Drop Tester is a special testing instrument developed to eliminate inaccurate pressure drop testing results for unwrapped filter rods by traditional test methods. In the pressure drop test process, the instrument adopts physical extrusion to wrap the paperless filter rod, so the measurement result is stable and reproducible. The instrument can be used to test samples with different specifications by matching test heads with different sizes.
Technical parameters
| Sample circumference range |
For 16 to 20 mm, the length range is: 60 ~ 100 mm |
| Sample circumference range | For 22 to 30mm, the length range is: 60 ~ 150 mm |
| Pressure drop range | 0 ~ 10000 Pa |
| Resolution | 10Pa |
| Measurement accuracy | ±1%FS |
