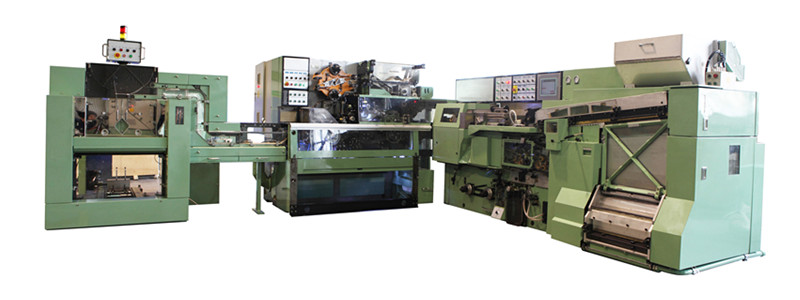

Molins MK9 Roll Wrapper — Technical Reference Diagram
Machine Zone Reference & Spare Parts Location Guide
Machine Partition Reference
- Feeding System — Tobacco Hopper, Elevating Belt, Distributor
- Roll Connection Drum Wheel — Forming Drum Wheel Set, Tobacco Tongue Assembly
- Cigarette Gun/Forming Area — Garniture Cigarette Gun, Tongue, Air Suction Belt
- Cutting System — Rotary Cutter, Blade Assembly
- Filter Tip Assembly — Max S Assembly Machine, Filter Tip Drum Wheel
- Discharge/Detection — Cigarette Discharge Drum Wheel, Weight Detection
- Electrical Control — PLC Control Cabinet, Operation Panel
- Drive System — Main Drive, Gearbox
Key Spare Parts Correspondence Table
| Section | Parts | Category | Recommendation |
|---|---|---|---|
| 1 Supply of materials | Tobacco strip conveyor, distributor scraper | Conveyance/Transport Item | Rubber/Polyurethane |
| 2 drum wheel | Molded drum wheel, suction drum wheel | drum wheel assembly | Aluminum alloy + coating |
| 3 smoker | Garniture smoke gun, tongue, suction belt | Smoke Gun Component | microcrystalline tungsten carbide |
| 4 cutting | Cutting tool assembly, blade (TCT/HSS) | cutting blade | Carbide TCT |
| 5 filter tip | Filter tip cutting blade, Max S drum wheel | Filter tip component | carbide |
| 6 discharge | Discharge drum, detection module | Testing/Electrical | Electrical standard parts |
| 7 Electrical | PLC Module, sensor, control panel | Electrical components | OEM/Compatible alternative |
| 8 Transmission | Drive gears, bearings, belts | transmission component | alloy steel |
Maintenance Frequency Reference
| Maintenance Level | frequency | Main actions |
|---|---|---|
| Daily | per shift | Clean the smoke gun, check the blade edge of the cutter, lubricate |
| Weekly Inspection | Weekly | Check the tension of the suction belt and the wear on the drum surface |
| Monthly Inspection | Monthly | Replace the cutting blade, check the drive belt, clean the electrical cabinet |
| Quarterly | quarterly | Replace the suction belt and check the bearing clearance |
| Year | Annually | Comprehensive inspection and replacement of worn drum wheel components |
