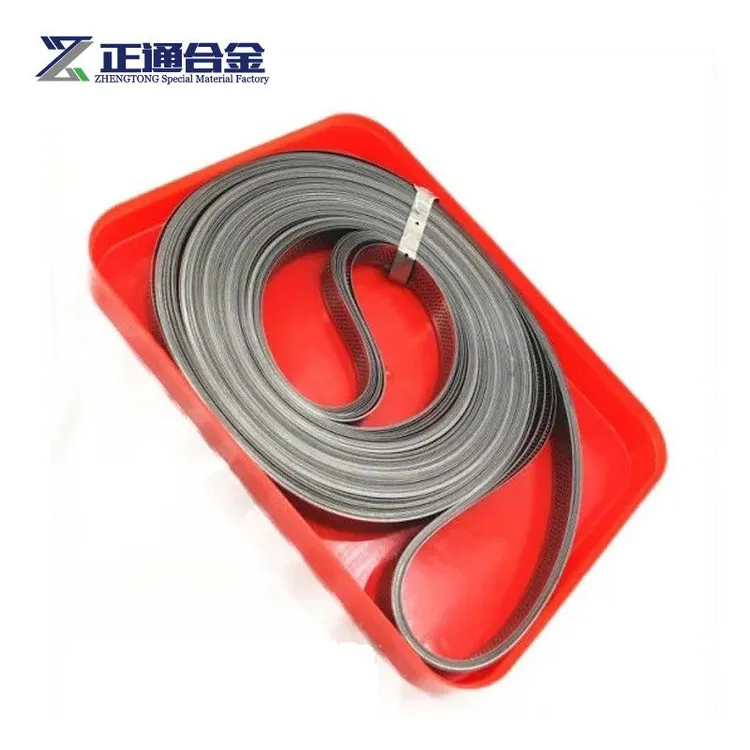

Introduction to Molins MARK 8 and MARK 9 Vacuum Belts
The vacuum belt is one of the most critical consumable components on Molins MARK 8 and MARK 9 cigarette making machines. It transports the tobacco rod through the garniture section while vacuum pressure shapes and compresses the tobacco column before the wrapping paper is applied. A worn or incorrectly specified belt directly affects cigarette rod density, circumference consistency, and overall production quality.
This guide covers everything maintenance engineers need to know: belt types, dimensional specifications, wear indicators, replacement intervals, and installation best practices.
Vacuum Belt Types for MK8 and MK9
Molins designed the MARK 8 and MARK 9 with different belt geometries. While some belts are interchangeable between the two models, others are specific to one generation.
| Part Number | Machine | Width (mm) | Length (mm) | Hole Pattern | Material |
|---|---|---|---|---|---|
| MCB-0012 | MARK 8 | 45.0 | 1420 | 4-row staggered | PU-coated polyester |
| MCB-0024 | MARK 9 | 48.5 | 1480 | 5-row staggered | PU-coated aramid |
| MCB-0036 | MARK 9N | 48.5 | 1500 | 5-row offset | PU-coated aramid (antistatic) |
| MCB-0048 | MARK 8 (late) | 45.0 | 1420 | 4-row diamond | Silicone-coated polyester |
Wear Indicators: When to Replace
Running a worn vacuum belt past its service life leads to rod quality issues and can damage the garniture tongue. Monitor these indicators:
- Uneven vacuum pressure readings — a drop of more than 15% from nominal suggests belt hole or surface wear
- Visible edge fraying — the belt edges show frayed fibers or delamination along the drive side
- Rod weight variation — cigarette rod weight fluctuates more than ±3% from the target
- Surface glazing — the belt running surface becomes glossy and hard, reducing grip on the tobacco rod
- Hole deformation — vacuum holes stretch or tear, especially around the garniture tongue area
Recommended Replacement Intervals
| Machine | Normal Conditions | High Abrasion (stem-heavy blend) | High Humidity (>75% RH) |
|---|---|---|---|
| MARK 8 | 2000–2500 hours | 1200–1600 hours | 1500–2000 hours |
| MARK 9 | 2500–3000 hours | 1500–2000 hours | 1800–2400 hours |
| MARK 9N | 3000–3500 hours | 2000–2500 hours | 2200–2800 hours |
Installation Best Practices
Pre-Installation Checks
- Inspect the garniture bed for burrs or sharp edges before fitting a new belt
- Clean all drive rollers and idler pulleys with a lint-free cloth
- Verify belt dimensions match the machine specification — a 2 mm width difference can cause tracking problems
Installation Procedure
- Release tension fully before threading the belt into the garniture section
- Align the belt seam or splice mark with the drive roller centerline
- Apply tension in 10 N increments while rotating the drive manually
- Check tracking after each tension adjustment — the belt should run centered within ±1 mm
- Run the machine at 25% speed for 10 minutes, then recheck tracking and tension
Compatibility Notes
While ZTLibre manufactures belts compatible with both Molins MARK 8 and MARK 9 platforms, we recommend confirming the following before ordering: exact machine model and serial number, current belt part number (if available), and tobacco blend type (stem content affects belt wear rate). Our standard belts are manufactured with OEM-spec hole patterns and dimensional tolerances within ±0.2 mm.
Our polyurethane-coated aramid vacuum belts deliver up to 30% longer service life in high-abrasion conditions compared to standard polyester belts. Contact our technical team for a free compatibility check.
Vacuum Supply System Integration
The vacuum supply system must be properly matched to the belt specifications. The Molins MARK 8 uses a single-stage vacuum pump delivering approximately 60 mbar at 40 m³/h, while the MARK 9 requires a two-stage pump providing 80 mbar at 55 m³/h due to the denser tobacco rod formation. An undersized vacuum supply leads to insufficient tobacco compression and rod weight variations that exceed acceptable quality limits.
When upgrading from a MARK 8 to a MARK 9 belt specification, always verify that the vacuum pump capacity meets the new belt requirements. The 5-row hole pattern on MARK 9 belts draws approximately 20% more vacuum volume than the 4-row pattern on MARK 8 belts. ZTLibre recommends a vacuum gauge tap at the garniture vacuum plate for real-time monitoring.
- Check vacuum hose condition every 1000 hours — collapsed or cracked hoses reduce effective vacuum by up to 30%
- Clean vacuum filters every 500 hours — clogged filters cause uneven vacuum distribution across the belt width
- Verify vacuum plate flatness during belt replacement — a warped plate causes localized vacuum loss and belt tracking issues
Troubleshooting Common Vacuum Belt Problems
| Symptom | Likely Cause | Solution |
|---|---|---|
| Rod weight too low | Excessive vacuum, worn belt holes | Reduce vacuum pressure (10 mbar steps), replace belt |
| Rod weight variation > 3% | Uneven vacuum distribution, belt tracking off | Realign belt, check vacuum plate flatness |
| Belt tracking drift | Worn drive roller, incorrect tension | Verify roller surface condition, reset tension to spec |
| Visible belt edge damage | Garniture bed burrs, misaligned guides | Deburr garniture bed, check guide rail alignment |
| Excessive belt noise | Dry bearings, belt too tight | Lubricate drive bearings, reduce tension by 5 N increments |
ZTLibre Vacuum Belt Range
Our complete range of Molins-compatible vacuum belts includes options for every production condition: standard polyester belts for general-purpose production, aramid-reinforced belts for high-abrasion tobacco blends, antistatic belts for dry climates where static discharge can cause operational issues, and high-temperature belts for facilities operating in tropical climates above 35°C. Each belt is marked with the ZTLibre part number and manufacturing date for easy identification and lifecycle tracking.
We recommend maintaining a minimum of one spare belt per MARK 8 or MARK 9 machine in your inventory. For facilities with three or more Molins machines, a consignment stock arrangement with ZTLibre ensures immediate availability without tying up capital in spare inventory. Contact our parts planning team for a custom inventory recommendation based on your production volume and blend composition.
